Item |
Antibacterial Color Coated Steel Coils |
||||||
|
Standard |
ISO12944/GB/T12754:2006/Customer requirements |
||||||
|
Hardness |
55-85 HRB |
Thickness |
0.085mm-1.6mm |
||||
|
Width |
700mm-1250mm can be customized |
Coil ID |
508mm/610mm |
||||
|
Paint film |
Top: 10-28um Back: 4-22um |
Zinc layer |
10g/㎡-180g/㎡ |
||||
|
Color |
Ral or Pantone Colors, also can be customized according to sample |
||||||
|
Surface structure |
PVC film, etc |
||||||
|
Tolerance |
Thickness:+/-0.03mm |
||||||
|
Width:+/-5mm |
|||||||
|
Total quantity: +/-10% |
|||||||
|
Quality test |
SGS testing / test zinc coating thickness / PE coating thickness / T testing and others by every coil |
||||||
|
Inspection |
SGS, TUV, BV, ABS, LR etc. |
Certificate |
ISO 9001:2008, SGS |
||||
|
Packing |

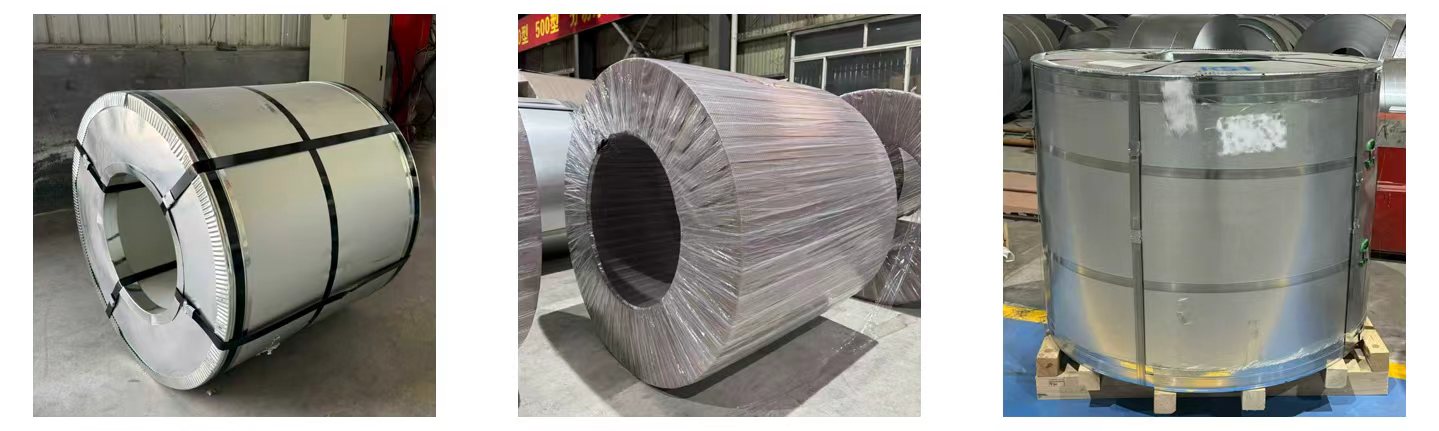

Standard export package .Plastic film in the first layer, second layer is Kraft paper. Third layer is galvanized sheet. |
||||||
|
Application |
Building industry,structural use, roofing, commercial use,household appliance, industrial facilities, office buildings |
||||||
|
Payment Terms |
FOB 30%T/T,70% before shipment CIF 30% front money and 70% before shipment (the balance against B/L (copy)) Irrevocable 100% L/C at sight |
||||||
ApplianceColor Coated Steel Coils are made by applying High-Performance Color Coated Steel Coils onto pretreated substrates (degreasing, phosphating, chromating) and then baking. They offer rich color options, excellent corrosion resistance, and good formability. Widely used in construction, appliances, and transportation. Typical applications include:
Building Envelope Systems: Roofing and wall cladding for industrial plants, warehouses, logistics centers, and stadiums.
Household Appliances: External casings and internal components for air conditioners, refrigerators, washing machines, etc.
Interior Decoration: Ceiling panels, partition walls, furniture surfaces.
Transportation: Interior panels for rail cars and ship cabins.
