Item |

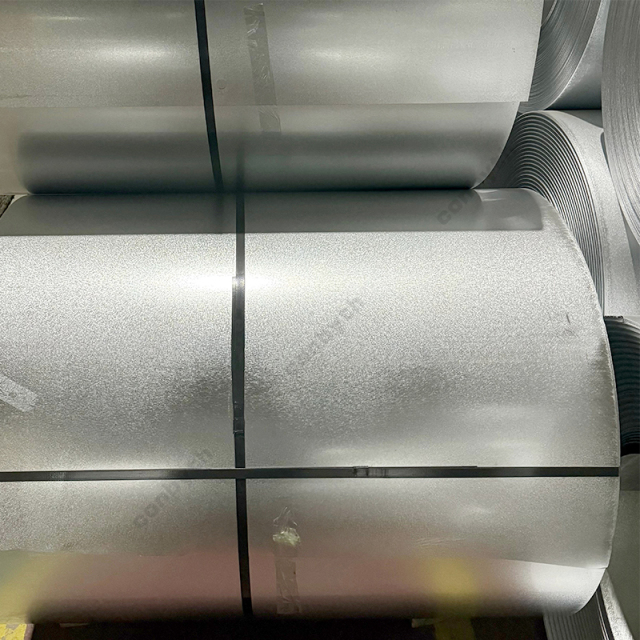

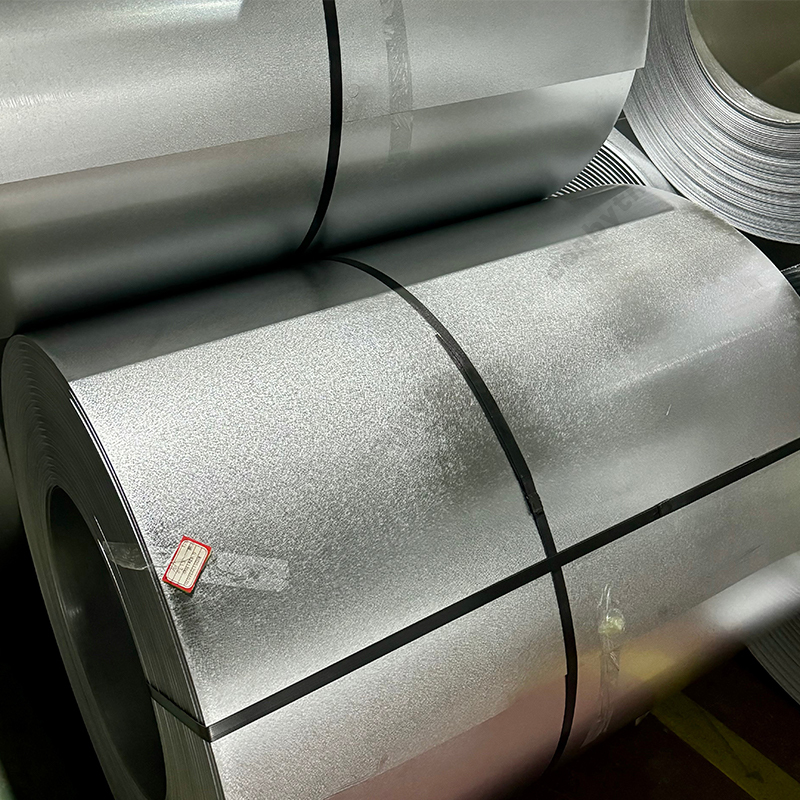

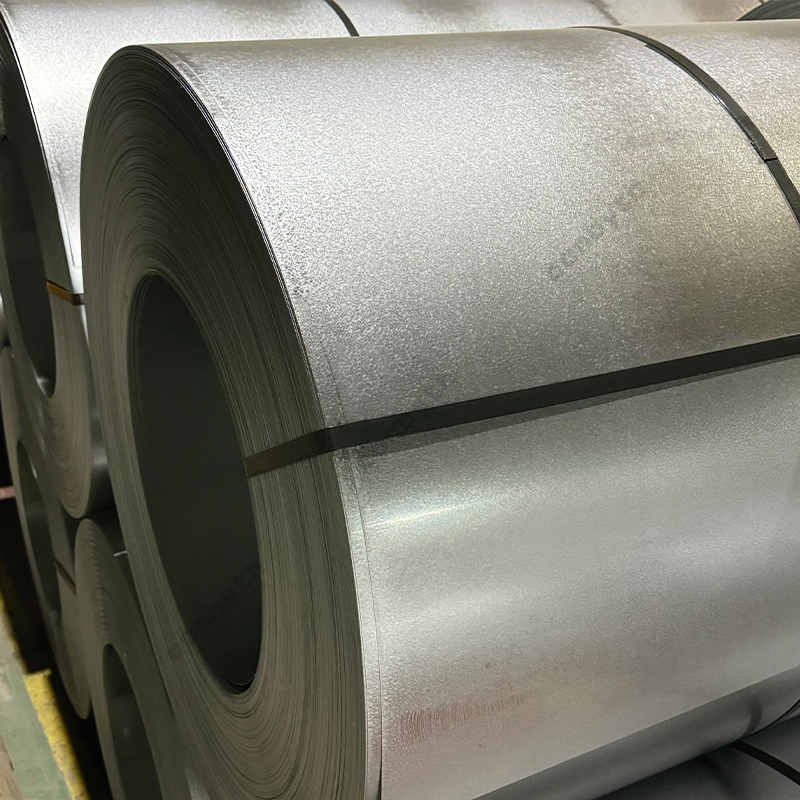

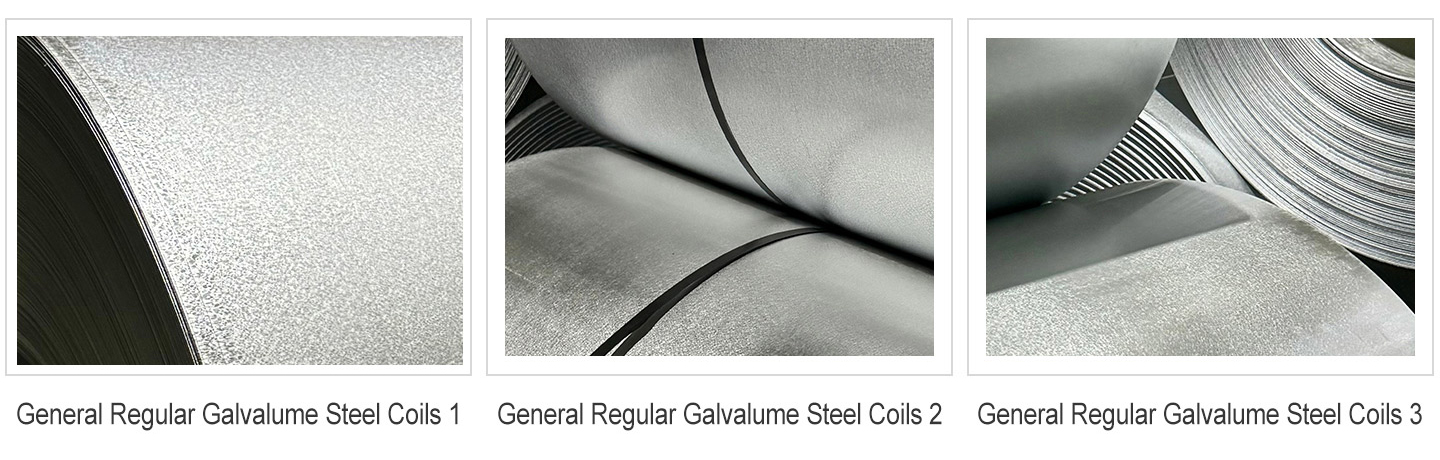

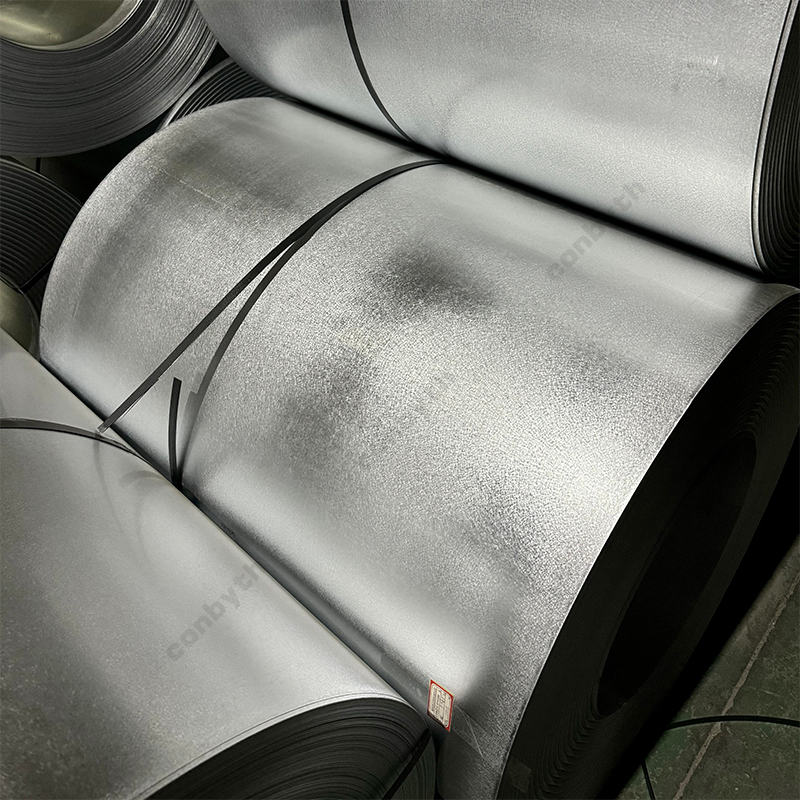

Regular Galvalume Steel Coils |
||||
|
Standard |
ISO14788/ASTM A792/A792M/JIS G3321/GB/T14978-2017/Customer requirements |
||||
|
Hardness |
55-85 HRB |
Thickness |
0.11mm-0.8mm |
||
|
Width |
750mm-1250mm can be customized |
Coil ID |
508mm/610mm |
||
|
Zinc layer |
15g/㎡-60g/㎡ |
||||
|
Tolerance |
Thickness:+/-0.03mm |
||||
|
Width:+/-5mm |
|||||
|
Total quantity: +/-10% |
|||||
|
Tensile Strength |
>300mpa |
Yield Strength |
270-380mpa |
||
|
Quality test |
SGS testing , test zinc coating thickness/ T testing and others by every coil |
||||
|
Inspection |
SGS, TUV, BV, ABS, LR etc. |
Certificate |
ISO 9001:2008, SGS |
||
|
Application |
Residential and Commercial Exterior Building Products, Roofing, Siding, Cabinetry, etc. |
||||
|
Packing |
Standard export package .Plastic film in the first layer, second layer is Kraft paper. Third layer is galvanized sheet. |
||||
|
Payment Terms |
FOB 30%T/T,70% before shipment CIF 30% front money and 70% before shipment (the balance against B/L (copy)) Irrevocable 100% L/C at sight |
||||
ApplianceGalvanized Steel Coils are coated with a protective zinc layer through hot-dip or electro-galvanizing processes, providing strong corrosion resistance and extended service life. Suitable for environments with high weather resistance requirements. Main applications include:
Building Structures: Light steel frames, ventilation ducts, cable trays.
Automotive Manufacturing: Anti-corrosion parts such as underbody panels, fuel tanks, bumpers.
Agricultural Facilities: Grain silos, greenhouse structures, livestock equipment.
Daily Hardware: Distribution boxes, instrument cabinets, appliance housings.
